TDP

6 W

NPU

1 TOPS

Graphic card

ARM G52 2EE

Multi displays

Screen Mirroring

Interface

1 x HDMI-Out 4K @60Hz

Lan IC

RTL8111H

Lan Interface

100/1000Mbps

Lan Connector

1 x RJ45 Ports

Wireless Type

SDIO

Wireless Interface

1T1R, 2.4G/5G WiFi5 /BT4.2

4G/5G

N/A

Serial Port

N/A

USB

1 x USB3.0,  3 x USB2.0

Button

1 x Volume up, 1 x volume down, 1 x system settings, 1 x screen off, 1 x Power Button

SIM CARD

N/A

AUDIO

1 x 3.5mm Audio Jack（Mic-In + Line Out）

POWER

1 x 2.1/5.5 DC-IN Connector

Memory

2GB LPDDR4/4X

Storage

16GB EMMC

OS

Android 11

LCD

23.8 inch, 1920*1080 IPS, LVDS

MCU

Optional (Wake-on-LAN /Remote Shutdown /Watchdog /Auto Power On)

Camera

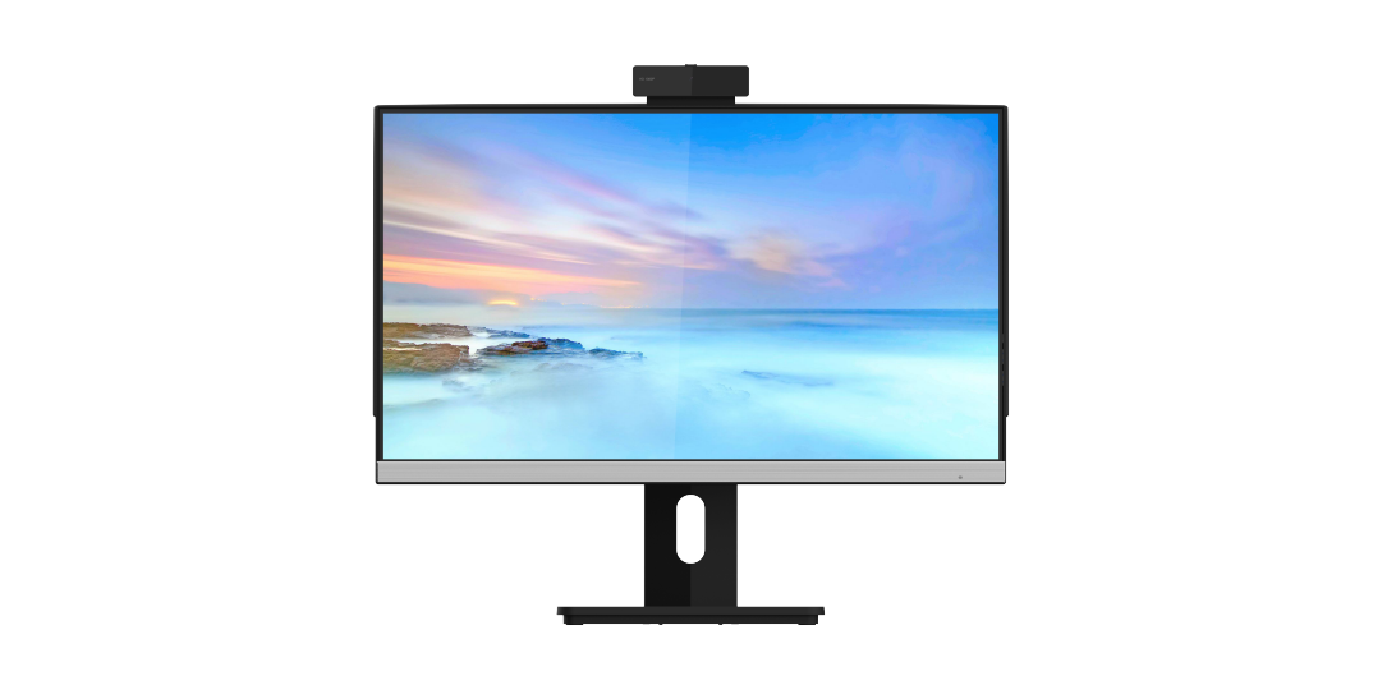

Optional Elevating Camera

Speaker

2 x 8Ω / 3W

Power Input

12v 2.1/5.5 DC-In

Dimension

540mm(L) x 422mm(W) x 175mm(H)

Operating Temp.

0~40℃

Operating Humidity

20%~80% non-condensing

Storage Temp

-20~65℃

Operating Humidity

20%~95% non-condensing
